Top 10 Refrigerator Run Capacitor 15Uf

Refrigerator Start Device for Whirlpool part number W10613606.Includes 15 uf x 250 Vac Capacitor, Relay and Overload.Replacement for numbers 67003186, 67003764, 67005560, 67005561, 67005562, 8171210, 8208290, 8208368, AP5787784, C8931605, PS8746522 and W10416065.Designed to fit specific Whirlpool manufactured refrigerator models including Amana, Jenn Air, Kenmore, Magic Chef, Maytag and Roper.

The picture can tell more than we can, what you see is what you will receive,please make sure it will fit your machine before bidding it.
Please check pictures for more details.

Package Include:
1 x  Dehumidifier start relay

15 uF MFD Oval Capacitor

Over View Size(without terminal):2 x 1.25 x 4in/50x32x100mm(WxTxH)

Net weight: 4 Oz/113g

Working Temperature:-40 C. to +70 C/ -40F to 158F

CBB65 Capacitors are widely uesed for refrigerator or air conditioners or ICE maker system where needs cool compressers or heat pump

Kindly Remind:

1.All CBB65 capacitors’ aluminium shell are made by punching machine or cast machine,sometimes it will has slight scratches on surface, no impact electrical functions.

2.All CBB65 capacitors’ aluminium shell will relect light during taking photoes when spot light is on

3.Some CBB65 capacitors’ picture seems so smoothly only they uesed photo hazy or PS technology, actual same

Our product consists of two parts: both the run capacitor and the start relay.

Replaces Part: 14217273,67003186,67373764,67005560,67005561,67005562,8171210,8208290,8208368，C8931605，W10416065，W10613606VP.

Compatible Brands:Amana，Kenmore，Maytag，Whirlpool，KitchenAid，Jenn-Air，Litton，Crosley，Dacor，Admiral，Hardwick，Magic Chef，Inglis.

Please Note: the brand name or model designation for this product is made solely for purposes of demonstrating compatibility.

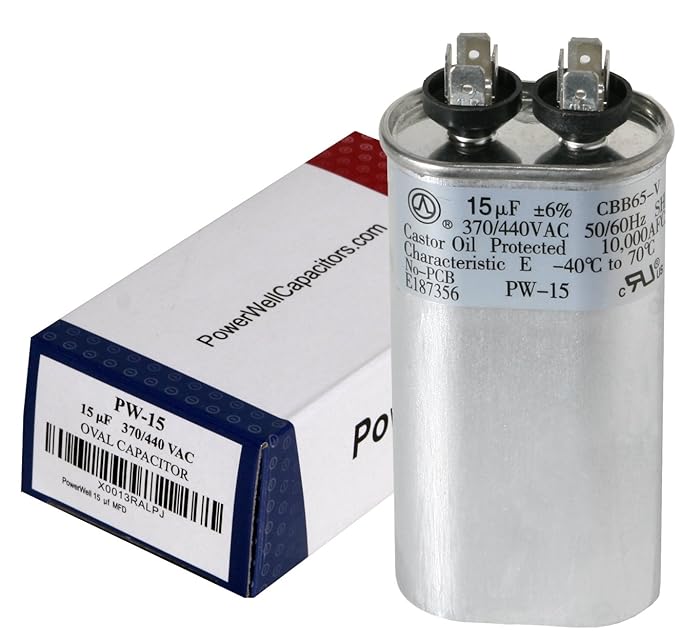

This capacitor is the direct replacement for many furnaces, air conditioners, and heat pumps. This model will replace all 1-1/4″ x 2″ oval base capacitors rated at 15 UF (15 MFD) for 370 volt applications. This item is made in USA to exact tolerances. IMPORTANT NOTE ON CAPACITOR FITMENT: This is an oval capacitor which measures 1-1/4″ x 2″ at the base. Due to changes in capacitor materials and manufacturing over the years there have been slight variations in case diameter. This is especially true if replacing an older plastic capacitor with a new metal case capacitor. If your capacitor mounts through a hole bracket it may be necessary to enlarge the hole slightly with a file or grinder on some older units. This part is covered by the exclusive OneTrip Parts five year limited replacement policy. If this part fails within five years from date of purchase, return the defective part and a copy of the original invoice to the place of purchase for replacement. Contact the authorized OneTrip Parts dealer that you purchased the part from for details. Original equipment manufacturer’s brand name(s) and part numbers are used for identification purposes only. This item is supplied by OneTrip Parts and meets or exceeds original equipment specifications.

A capacitor is an electric component that temporarily stores an electrical charge. A dual “run capacitor” supports two electric motors, such as in large air conditioner or heat pump units, with both a fan motor and a compressor motor. It saves space by combining two physical capacitors into one case. The dual capacitor has three terminals labeled “C”, “FAN”, and “HERM”, which stand for the *C*ommon, Fan, and *HERM*etically sealed compressor.

Dual capacitors come in a variety of sizes, depending on the capacitance (µF or MFD), such as 40 plus 5 µF, and also the voltage. A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can’t be used in place of a 440 volt. It will work for a while and will fail prematurely, as exceeding the capacitor’s rated voltage will cause the dielectric to break down and the capacitor to short out. Same as an electric wire- 600V rated wire is better than 300V one .The capacitance(µF or MFD) must be the same or stay within +10% or -10% of its original value . Example: 50 µF cap can be substituted by 45 to 55 µF with the same or better voltage ratings capacitor .

Round cylinder-shaped dual run capacitors are commonly used for air conditioning, to help in the starting of the compressor and the condenser fan motor.Round capacitor can be used to substitute oval shape one with the same MFD AND Volt specs

You will ask “Why I need a Cap that is rated 440V in my A/C?”

Answer: You need to realize that a motor is an inductive device. When the supply voltage is applied to the motor run winding, the voltage across the start winding will be increased to a higher voltage value. A motor acts like a transformer with the run winding acting as the primary and the start winding acting as the secondary. This is why the capacitor has a much higher voltage rating than the 230 being the supply voltage.

If a Capacitor is not EIA-456-A approved means it is not approved for US market.
